Automatic Gate Opener Types and Add-Ons
Swing Gate Operators
A swing operator pushes and pulls the leaf with an arm. Motors are sized to the gate's weight and length: a light-duty unit can run on solar or battery power, while medium and heavy-duty units usually need hardwiring. The gate standard also sets a minimum gap between an open leaf and any wall or fence, so no one is pinned between them.
- Light-duty opener, 115V: $200 to $1,000 (materials)
- Medium-duty, 230V: $350 to $2,000
- Heavy-duty, 208V to 460V three-phase: $450 to $5,000
- Automatic swing gate, installed: $1,350 to $8,500

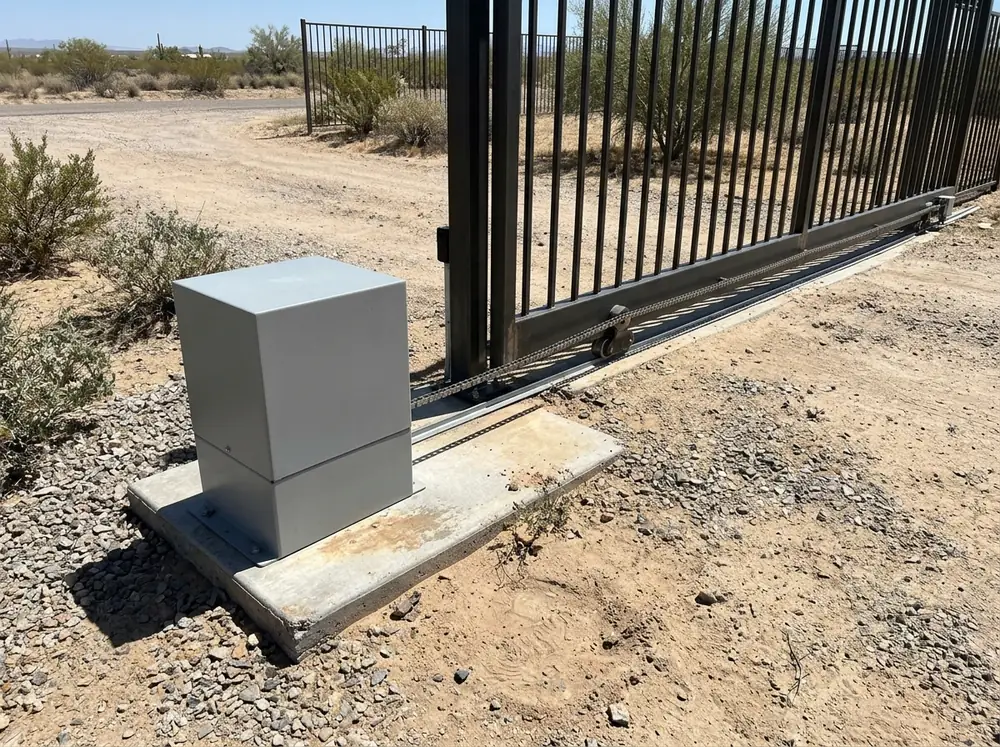

Slide Gate Operators
A slide operator sits on a pad beside the opening and drives the gate along its track. The gate standard asks for guarded rollers and guide wheels and for positive stops on every slide gate, so it can't run off its supports and fall. Ask whether the stops and roller covers are part of the quote.
- Automatic slide gate, installed: $1,050 to $5,150

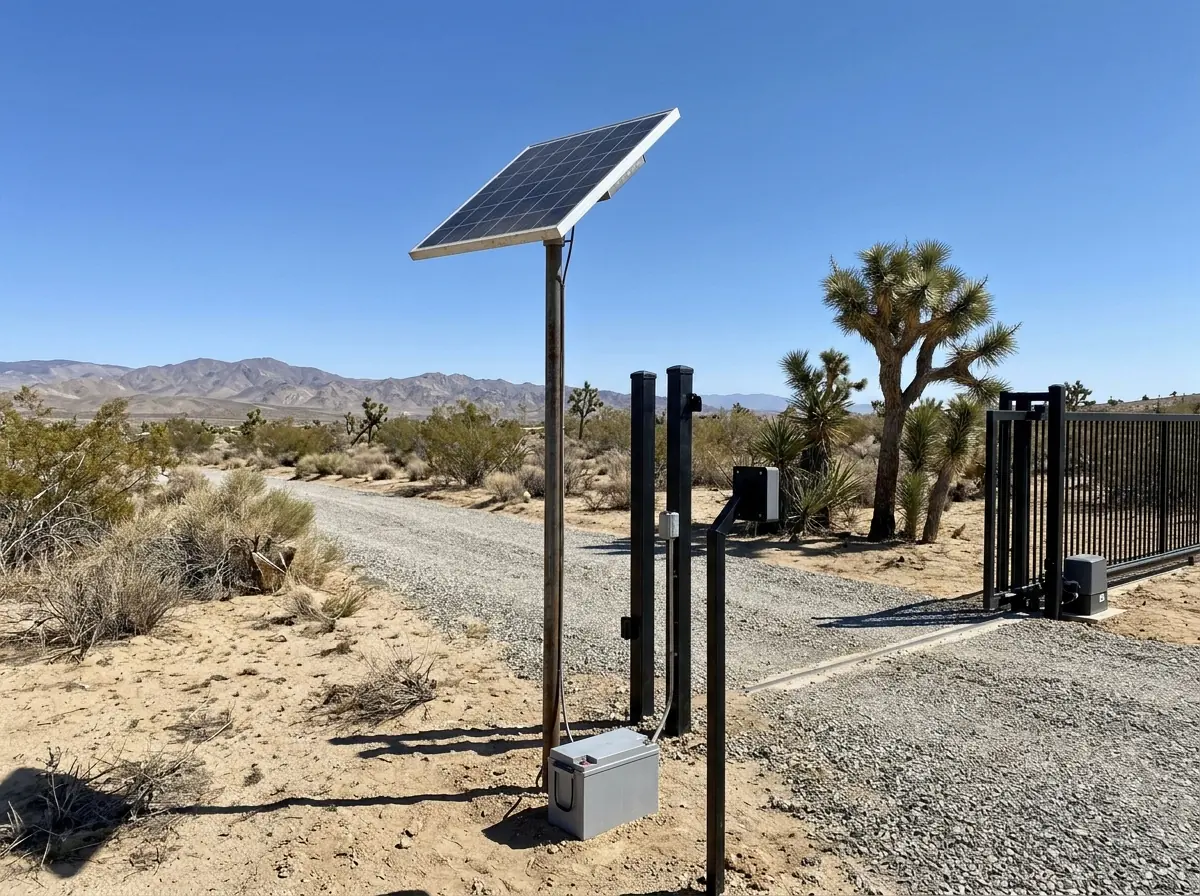

Solar-Powered Openers
A solar panel powers the opener without a line from the house, and cost guides say it suits light-duty openers. A heavy steel or RV gate usually needs a hardwired supply, and solar openers sit near the top of the opener price range.
- Solar power setup: $500 to $2,000 (materials)
- Battery power: $200 to $600
- Hardwired power: $400 to $5,000
- Replacement opener battery: $20 to $85, every few years

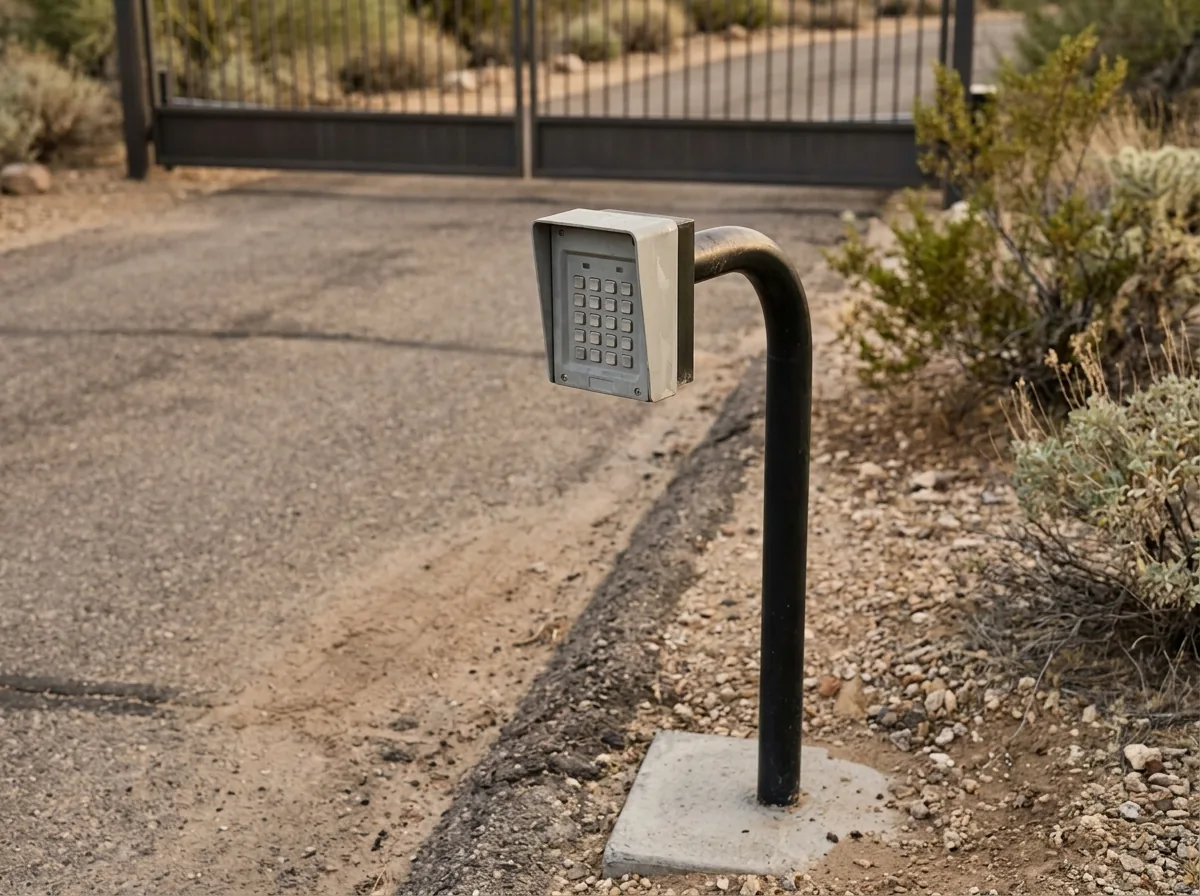

Keypads, Remotes and Phone Access
Remotes ride in the car, a keypad lets guests and deliveries in by code, and an intercom lets you talk to whoever is at the gate and open it from the house. Higher-end openers add Wi-Fi and phone apps. Ask how fire and medical crews will get through, since industry guidance expects emergency access from the street side.
- Remote: $75 to $300
- Keypad: $400 to $800
- Intercom: $1,000 to $7,000

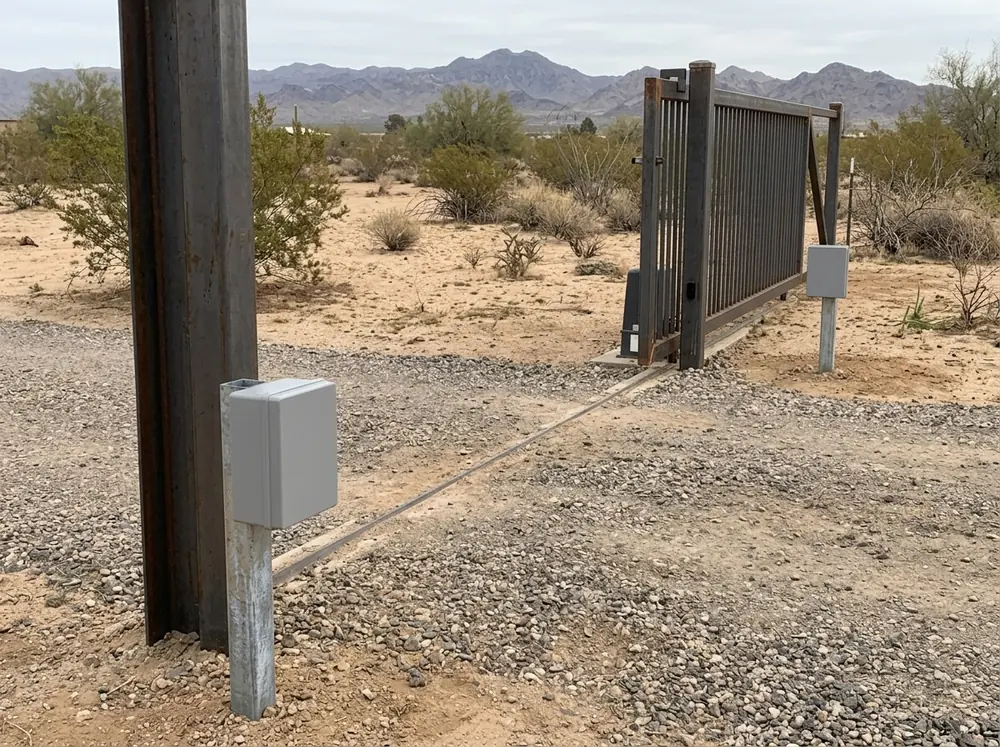

Safety Sensors and Sensing Edges
Cost guides say UL 325 requires installers to fit entrapment protection in each direction the gate moves. Sensing edges and optical sensors, the most common type, tell the operator to stop or reverse when something is in the way. Turning a manual gate into an automatic one also means removing its old latch, which becomes a hazard on a moving gate.
- Gate sensor: $200 to $2,000
Why Hesperia homeowners call Hesperia Expert Fencing
- Calling or using the form doesn't cost you anything
- We send your job to one contractor, so your phone isn't ringing all week
- Ask for posts, footings, gates and haul-away priced line by line
- Look up the C-13 (fence) or C-29 (block wall) license at cslb.ca.gov
What an Automatic Gate Opener Costs
National guides split the job into the gate, the opener and the labor. These are typical installed figures, not a local quote:
| Item | Typical national range |
|---|---|
| Electric gate, installed | $2,500 to $5,500 (average $4,000) |
| Opener alone | $400 to $5,000 |
| Automating an existing gate | $400 to $5,500 |
| Installation labor | $750 to $4,800 |
| Permit, where one is needed | $100 to $300 |
Heavier gates, double leaves and add-ons such as sensors and cameras take longer to fit and cost more. Gate prices on their own are on the driveway gate page.
Fitting, Testing and Upkeep
- 1
Check the gate first
It has to swing or roll freely without dragging, on sound posts, before a motor goes on. - 2
Mount the operator and run power
Pad, arm or rack, then solar panel, battery or a hardwired line. - 3
Add controls and safety devices
Keypad, remotes, sensors and edges, then set the open and close limits. - 4
Test the reversal and the manual release
Learn where the release is before the installer leaves.
Most openers go on in less than a day. Afterward, lubricate the moving parts every six months, or every three months if the gate cycles more than 15 times a day, and book a roughly one-hour inspection once a year. Guides expect 10 to 15 years from an automatic gate.
Gate Openers in Hesperia's Wind
An operator also has to fight the wind while the gate moves, which is one reason cost guides lean toward metal gates in windy places. They also say an above-ground operator should sit under a cover, and that an underground unit keeps the motor out of the weather entirely. How hard Hesperia's building rules assume the wind blows is on the wind-damaged fence repair page. If an opener already fails to close or reverses for no reason, see gate repair.
